Re: Fuel system upgrades

Post by bill »

BigM
Fastjeff,
Please publish the fuel circuit diagram. :)
Thanks
bill
Former owner of
ALUMINATION
Grosse Ile MI
Located on LakeErie
37' F/B Sedan
1975
Twin 360 Chrysler Marine
Raw water cooled
Hydraulic steering both helms
USCG Master Lic. Retired[/color]
Third Owner bill
Top
User avatar
bcassedy
Royal Aluminum Star
Posts: 536
Joined: Sun Jul 13, 2014 10:05 am
Location: Aurora, In.

Re: Fuel system upgrades

Post by bcassedy »

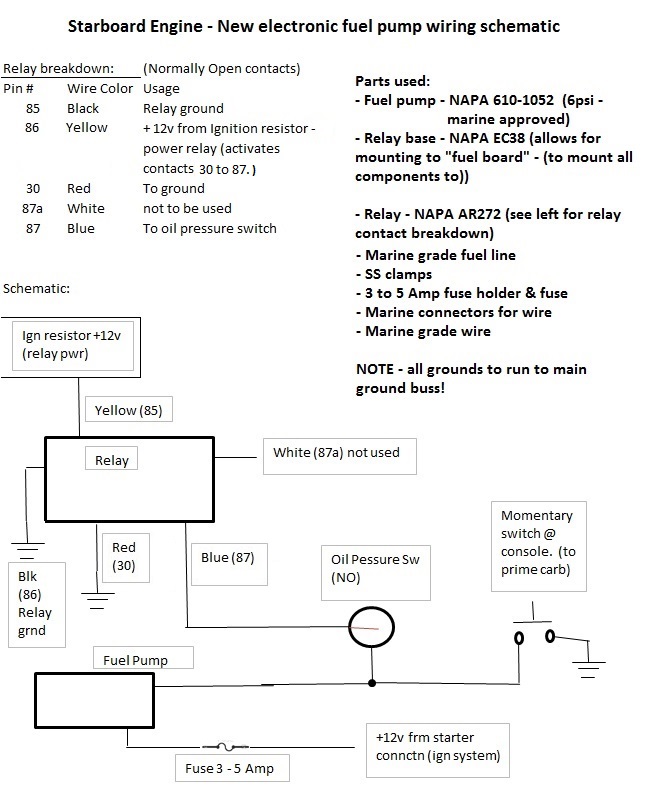

I worked up a schematic based on Jeff's notes.
--> If this is incorrect, PLEASE let me know and I'll delete it in favor of one from Jeff. I'm kinda feelin' my way here.
Fuel pump schematic.jpg
Bill
Bill & Sharon Cassedy
"Sunset Seeker"
'88 32' Sedan Bridge to be sold (updtd 1-1-22)
"Sunset Seeker Too" (SS2)
'88 41' Marquis hardtop. (as of 1/1/22)
Located in Aurora, In.
Always fresh water.
Top
ddependo
Royal Aluminum Star
Posts: 292
Joined: Mon Jul 14, 2014 10:00 am

Re: Fuel system upgrades

Post by ddependo »

This would be good back up to have when the mechanical fuel pump desides to guit.
Wayne
1973 32 express fly bridge
Chattanooga
"Southern Lady"
Top
Fastjeff
Site Admin
Posts: 1535
Joined: Sat Jul 12, 2014 5:06 am
Location: Rock Halll, MD

Re: Fuel system upgrades

Post by Fastjeff »

Good job! Mine's a bit ME vs an EE diagram.

Jeff (retired Mechanical Engineer)
"We live at the bottom of an ocean of air, not at the top." General Marvage Slatington
Top
User avatar
bcassedy
Royal Aluminum Star
Posts: 536
Joined: Sun Jul 13, 2014 10:05 am
Location: Aurora, In.

Re: Fuel system upgrades

Post by bcassedy »

Thanks Jeff!
Bill & Sharon Cassedy
"Sunset Seeker"
'88 32' Sedan Bridge to be sold (updtd 1-1-22)
"Sunset Seeker Too" (SS2)
'88 41' Marquis hardtop. (as of 1/1/22)
Located in Aurora, In.
Always fresh water.
